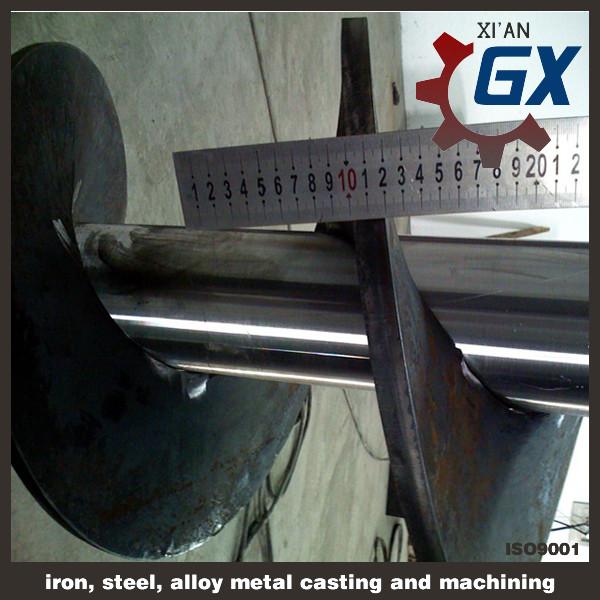

Screw blade of GX
GX Barrel
GX augers are manufactured using the same size barrel as was
supplied 50 years ago when you purchased a GX Auger, this allows
for easy replacement of all associated barrel items with no need to
worry about the age of the auger. The barrel is rolled and spiral
welded in our barrel forming machine and because of the accuracy of
our machine you can be assured you will receive the exact size as
specified in the table below.
Available Spiral Welded Barrel Sizes
| Description | Nominal size | Actual Outside Diameter | Gauge |
|---|
| Standard 100 mm 'GX' spiral welded barrel | 100 mm (4") | 102 mm | 2 mm |
| Standard 125 mm 'GX' spiral welded barrel | 125 mm (5") | 126 mm | 2 mm |
| Standard 150 mm 'GX' spiral welded barrel | 150 mm (6") | 158 mm | 2 mm |
| Standard 175 mm 'GX' spiral welded barrel | 175 mm (7") | 180 mm | 2 mm |
| Standard 200 mm 'GX' spiral welded barrel | 200 mm (8") | 205 mm | 2 mm |
| Heavy Duty 200 mm 'GX' spiral welded barrel | 200 mm (8") | 205 mm | 3 mm |
| Standard 225 mm 'GX' spiral welded barrel | 225 mm (9") | 230 mm | 2 mm |
| Heavy Duty 225 mm 'GX' spiral welded barrel | 225 mm (9") | 230 mm | 3 mm |
| Standard 250 mm 'GX' spiral welded barrel | 250 mm (10") | 254 mm | 2 mm |
| Heavy Duty 250 mm 'GX' spiral welded barrel | 250 mm (10") | 254 mm | 3 mm |
| Standard 275 mm ''GX' spiral welded barrel | 275 mm (11") | 285 mm | 2 mm |
| Heavy Duty 275 mm 'GX' spiral welded barrel | 275 mm (11") | 285 mm | 3 mm |
| Standard 300 mm 'GX' spiral welded barrel | 300 mm (12") | 305 mm | 2 mm |
| Heavy Duty 300 mm 'GX' spiral welded barrel | 300 mm (12") | 305 mm | 3 mm |
| Standard 350 mm 'GX' spiral welded barrel | 350 mm (14") | 358 mm | 2 mm |
| Heavy Duty 350 mm ''GX' spiral welded barrel | 350 mm (14") | 358 mm | 3 mm |
| Standard 400 mm 'GX' spiral welded barrel | 400 mm (16") | 410 mm | 3 mm |
Notes-:
- 'Actual outside diameter' sizes do not include the spiral weld.
- Keogh barrel is sold in a minimum length of 1 meter.
Screw blade of GX
GX augers rely on our in-house formed flite, flite can either be
supplied from our set range of continuous helicord flite or they
can be pressed into segments one pitch at a time. Segments are more
expensive than continuous flite but they can be formed into
practically any size that is required, this means we can supply you
with replacement fliting to suit any size auger you may have. We
also offer the supply of flite already welded to a variety of pipe
sizes as shown in the table below. For us to supply you with flite
to suit your application you will need to provide us with some
information, please see the tables and corresponding images below
to work out exactly what size flite you require!
Correct Flite Rotation designation
The hardest part of designating which flite you require is working
out if it is Right Handed (RH) or Left Handed (LH). When replacing
flite on an auger, deciding on whether it is LH or RH is critical
and quite easy. Forget about which way the auger rotates and which
way the product moves and use the following information to make
your decision.
How to designate Right Hand Flite
Stand at one end of your flite with the end of the strip at the 12
o'clock position, as shown at 'Z' in the above illustration. If the
flite strip moves away from you around the pipe clockwise (as shown
by the red arrow) towards the 'Y' then the flite you are looking at
is RH flight.
How to designate Left Hand Flite
Stand at one end of your flite with the end of the strip at the 12
o'clock position, as shown at 'X' in the above illustration. If the
flite strip moves away from you around the pipe anti-clockwise (as
shown by the red arrow) towards the 'W' then the flite you are
looking at is LH flight.
Continuous Helicord Auger Flite
Please reference between the below images and the table to find the
flight that you require
Right Hand Flite
Left Hand Flite
Available GX Continuous Helicord Auger Flite table
| Outside Diameter (A) | Pitch (B) | Suits Pipe Size (C) | Suits GX Auger | Gauge (D) | Rotation | Keogh Part Number |
|---|
| 75 mm | 85 mm | 20 NB (3/4") (26.9 mm OD) | N/A | 3.5 mm | RH | 90995-00002 |
| 89 mm | 89 mm | 15 NB (1/2") (21.3 mm OD) | 100 mm (4") | 3.5 mm | RH | 90995-00001 |
| 89 mm | 89 mm | 20 NB (3/4") (26.9 mm OD) | 100 mm (4") | 3.5 mm | RH | 90995-00003 |
| 115 mm | 115 mm | 20 NB (3/4") (26.9 mm OD) | 125 mm (5") | 3.5 mm | RH | 90995-00011 |
| 128 mm | 128 mm | 25 NB (1") (33.7 mm OD) | Connor Shea GA150 | 3.5 mm | RH | 90995-00025 |
| 138 mm | 138 mm | 25 NB (1") (33.7 mm OD) | 150 mm (6") | 3.5 mm | RH | 90995-00021 |
| 138 mm | 138 mm | 32 NB (1 1/4") (42.4 mm OD) | 150 mm (6") | 3.5 mm | RH | 90995-00022 |
| 153 mm | 150 mm | 25 NB (1") (33.7 mm OD) | N/A | 3.5 mm | RH | 90995-00032 |
| 161 mm | 161 mm | 32 NB (1 1/4") (42.4 mm OD) | 175 mm (7") | 3.5 mm | RH | 90995-00031 |
| 178 mm | 178 mm | 40 NB (1 1/2") (48.3 mm OD) | N/A | 3.5 mm | RH | 90995-00048 |
| 182 mm | 182 mm | 32 NB (1 1/4") (42.4 mm OD) | 200 mm (8") | 3.5 mm | RH | 90995-00041 |
| 182 mm | 182 mm | 32 NB (1 1/4") (42.4 mm OD) | 200 mm (8") | 5.0 mm | RH | 90995-00042 |
| 183 mm | 183 mm | 40 NB (1 1/2") (48.3 mm OD) | 200 mm (8") | 4.8 mm | RH | 90995-00044 |
| 184 mm | 184 mm | 40 NB (1 1/2") (48.3 mm OD) | 200 mm (8") | 3.5 mm | RH | 90995-00043 |
| 188 mm | 188 mm | 25 NB (1") (33.7 mm OD) | Connor Shea GA200 | 3.5 mm | RH | 90995-00047 |
| 209 mm | 209 mm | 32 NB (1 1/4") (42.4 mm OD) | 225 mm (9") | 3.5 mm | RH | 90995-00051 |
| 209 mm | 209 mm | 32 NB (1 1/4") (42.4 mm OD) | 225 mm (9") | 4.8 mm | RH | 90995-00052 |
| 209 mm | 209 mm | 40 NB (1 1/2") (48.3 mm OD) | 225 mm (9") | 3.5 mm | RH | 90995-00053 |
| 209 mm | 209 mm | 40 NB (1 1/2") (48.3 mm OD) | 225 mm (9") | 4.8 mm | RH | 90995-00054 |
| 228 mm | 228 mm | 40 NB (1 1/2") (48.3 mm OD) | 250 mm (10") | 3.5 mm | RH | 90995-00061 |
| 228 mm | 228 mm | 40 NB (1 1/2") (48.3 mm OD) | 250 mm (10") | 4.8 mm | RH | 90995-00062 |
| 228 mm | 228 mm | 50 NB (2") (60.3 mm OD) | 250 mm (10") | 3.5 mm | RH | 90995-00063 |
| 228 mm | 228 mm | 50 NB (2") (60.3 mm OD) | 250 mm (10") | 4.8 mm | RH | 90995-00064 |
| 251 mm | 251 mm | 40 NB (1 1/2") (48.3 mm OD) | 275 mm (11") | 3.5 mm | RH | 90995-00071 |
| 280 mm | 280 mm | 50 NB (2") (60.3 mm OD) | 300 mm (12") | 3.5 mm | RH | 90995-00081 |
| 280 mm | 280 mm | 50 NB (2") (60.3 mm OD) | 300 mm (12") | 4.8 mm | RH | 90995-00082 |
| 280 mm | 280 mm | 65 NB (2 1/2") (76.1 mm OD) | 300 mm (12") | 3.5 mm | RH | 90995-00083 |
| 280 mm | 280 mm | 65 NB (2 1/2") (76.1 mm OD) | 300 mm (12") | 4.8 mm | RH | 90995-00084 |
| 330 mm | 330 mm | 65 NB (2 1/2") (76.1 mm OD) | 350 mm (14") | 3.5 mm | RH | 90995-00093 |
| 330 mm | 330 mm | 65 NB (2 1/2") (76.1 mm OD) | 350 mm (14") | 4.8 mm | RH | 90995-00094 |
| 330 mm | 330 mm | 80 NB (3") (88.9 mm OD) | 350 mm (14") | 4.8 mm | RH | 90995-00095 |
Notes:-
- GX continuous Helicord auger flite is sold in a minimum length of 3
meters.
- Not all sizes stocked please call to check stock levels
- Other sizes available on request if ordering very large quantities
Steel Segments
GX press segments up to 600 mm in diameter and up to 16 mm thick to
suit both our internal and external jobs each and every day. We
need to know the outside diameter, pitch, inside diameter, material
thickness, material type, orientation (LH or RH) and how many
segments will be required (Overall length / Segment Pitch) to be
able to manufacture and supply the segments that you require. We
can not supply segments where the pitch is larger than the
diameter, please ring to get a quote on the price and supply of
your required segments.
